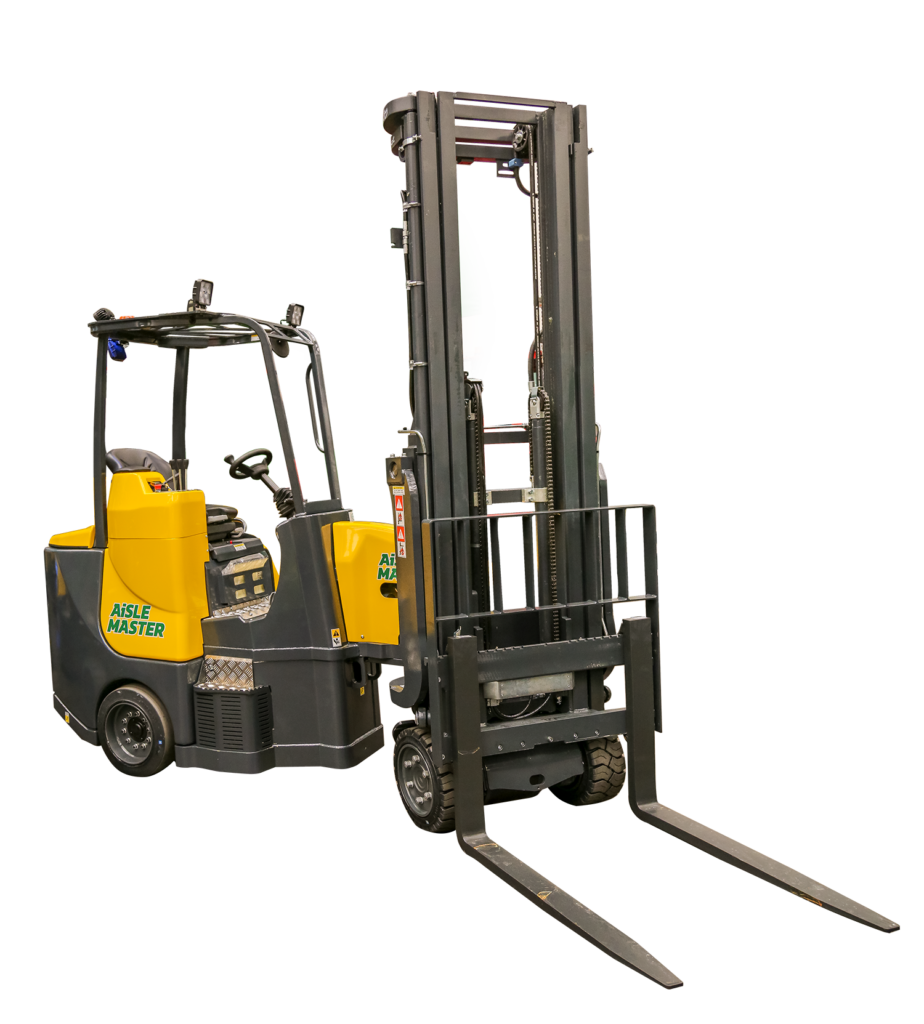

Aisle Master

Articulated Forklift

Aisle Master

Aisle Master Standard Specification 33E/44SE/44SHE/44WHE


• Mast Range: 164″ to 591″
• Overhead Guard: 89.5″
• Capacity: 3,300 lbs to 4,500 lbs
• Ground Speed: 10 mph
• Lift Speed (Laden) 78.75 ft/min
• Lift Speed (Unladen) 98.5 ft/min
• Front tire size: 16¼” x 7″
• Rear tire size: 18″ x 7″/9″
• Gradability (Laden) 12%
• Gradability (Unladen) 15%
• Battery Capacity Range: 620 Ah to 930 Ah
• Battery Voltage: 48v
• Weight of truck (without battery) 11,350 lbs to 12,145 lbs
• Weight of truck (with battery) 14,100 lbs to 15,650 lbs
• Standard Color* Yellow and Gray
• Standard Seat* KAB

*Item of specification can be modified to fit customer application and

Get A Free Demo Today!

Fill out the form below and one of our material handling experts will contact you to schedule a free live demonstration on one of our Comblift forklifts.

Or call us at 630-682-0021

Benefits of Aisle Master

Aisle Masters articulated forklifts easily operate in 6 ft Aisles, allowing for increased warehouse storage. The Aisle Master Narrow Aisle Forklifts enhance performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradability. With these units, there are fewer wearable parts resulting lower cost in maintenance and less downtime.

Additional Aisle Master Benefits:

• Quick & easy battery removal
• AC Traction motor (19.5 kw)
• A choice of 620/775/930 amp-hour capacity batteries
• Ergonomically designed operator’s cab
• Reduced energy consumption
All Aisle-Master’s electric powered models now benefit from AC technology as standard. This puts the company firmly a the forefront of battery powered technology in the articulated sector. Aisle masters are offered in Electric and LPG!

Aisle Master Demos

We keep Aisle Master stock and rental units, we would love provide a demo to see if the Aisle Master can help your warehouse efficiency.

For warehouses Pallet Picking in Narrow Aisles, visit our Aisle Master Stand Up Page! Contact us today for a free quote by filling out our formbox or calling us directly (630) 682-0021.
